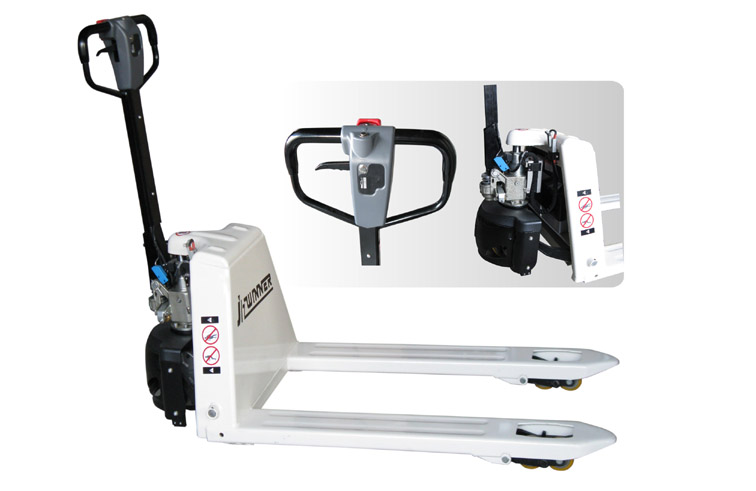

WEPT20-20EHJ Semi Electric Pallet truck

    詳細說明


    Model Specification

    WEPT20-20EHJ

    Drive unit

    Semi-electric

    Operatortype

    Walkie

    Load capacity

    Q (kg)

    2000

    Service weight

    kg

    145

    Tyre type

    PU

    Lift height

    h3 (mm)

    115

    Fork lowered

    h13 (mm)

    85

    Overall length

    l1 (mm)

    1580

    Overall width

    b1/ b2 (mm)

    560/685

    Fork dimensions

    s/ e/ l (mm)

    50/150/1150

    Outside fork width

    b5 (mm)

    560/685

    Aisle width，1000×1200 pallet crossways

    Ast (mm)

    1697

    Aisle width，800×1200 pallet crossways

    Ast (mm)

    1697

    Outer turing radius

    Wa (mm)

    1380

    Travel speed，laden/unladen

    km/ h

    3.5/4

    Maximum gradeability, laden/ unladen

    %

    2/6

    Drive motor rating S2 60 min

    kW

    0.65

    Battery voltage/rated capacity

    V/ Ah

    24/30
